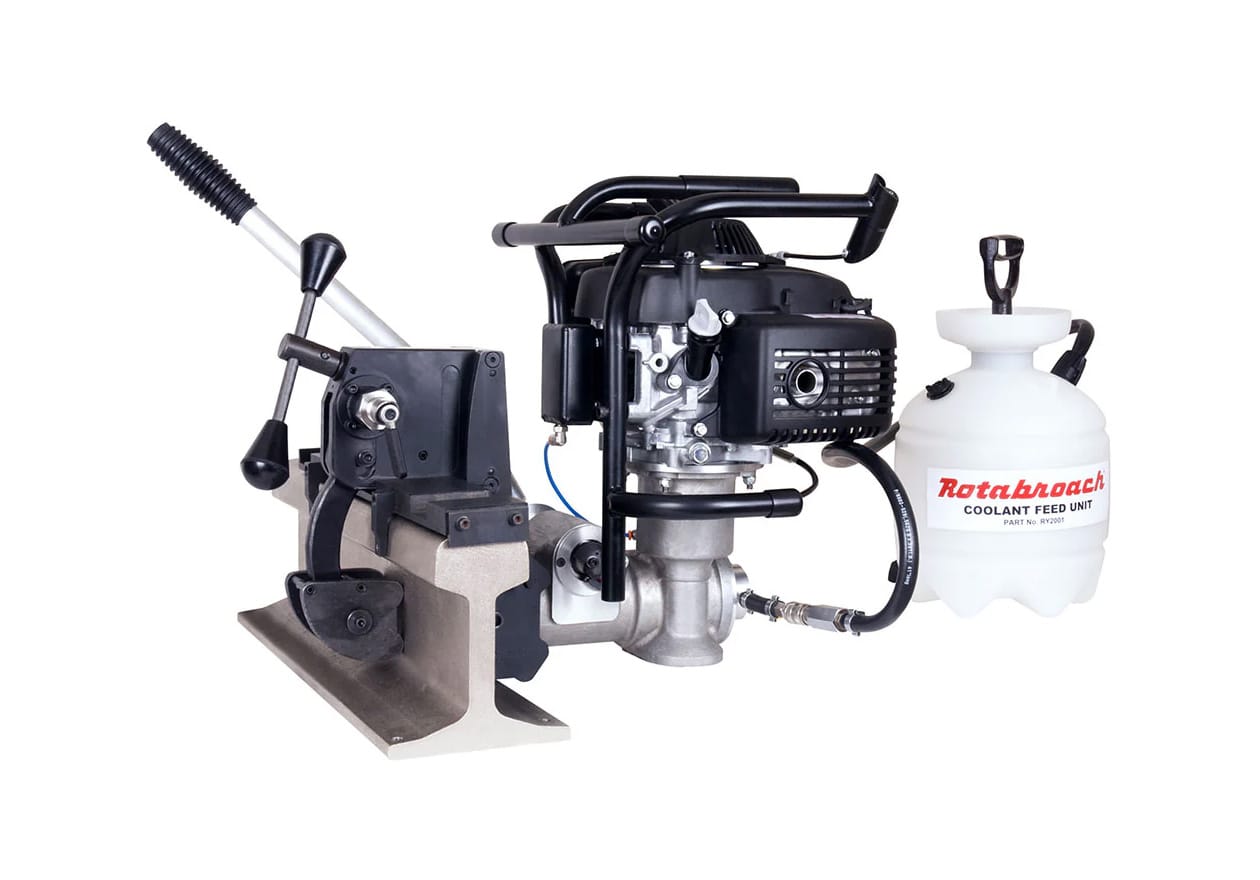

Rotabroach Rail Drill Package includes:

  • Rail Drill
  • Coolant Bottle
  • 5x 32mm Tungsten Carbide Tipped Cutters
  • 2x Height Templates 41-47kg/m & 53-60kg/m
  • 2x Hole Centre Locators 41-47kg/m & 53-60kg/m
  • Lightweight Carry Case
  • Quick Release Clamp
  • Bonding drill bit adaptor available

Part No. FP-112-RDPK-QC

Part No. FP-112-RDPK-QC-TW (Twist Drill cutter)


  • Complete with lightweight carrying case & coolant pump
  • Highly portable with low noise level (average noise level during cutting at operator’s ear position is 81 dBA)
  • Robust and reliable

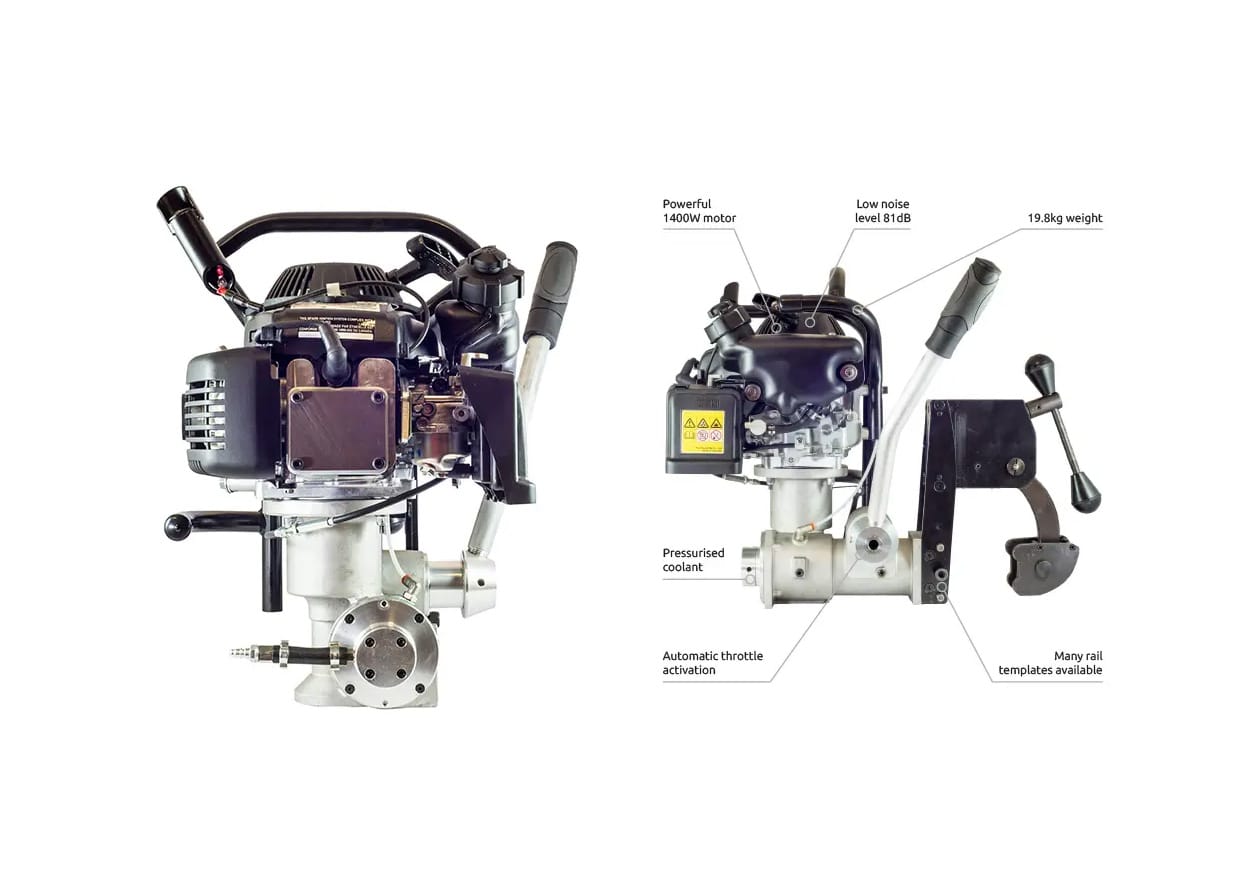

Model Number RD074 / RD074HSQ
Motor type Honda 4 stroke
Displacement 49 / 51
Maximum hole cutting capacity 36mm dia
No load speed 167rpm / 660rpm
Overall dimensions Height 420mm
Width 420mm Exc. bottle
Length 540mm
Net weight 18.5kgs
Spindle bore 19.05 (3/4″)
Throttle activation Automatic with feed
Safety features Clutch fitted
