A Vibracore is a device to apply vibrations to a sample tube. It’s just about the only way that good sampling can be achieved in water, tidal, and swampy areas. The retention of the sample is carried out with a unique core catcher.

The added use of a diaphragm vacuum pump can achieve up to an 80% vacuum which will further help to retain samples.

The energy supplied from the Vibracore is sufficient to drive a 76mm aluminum tube to 6 or more metres. Note that timber, stones, rocks etc. can limit the penetrable depth.

The Vibracore is sealed so that it can be used under water in shallow areas.

The power source may be from the drilling rig itself or from one Melvelle power packs with choices of petrol or diesel engines.

Concrete Vibrator modified and used with the Percussion Sampler Tripod

Percussion Sampler Tripod assembly: Part no. 1650065

Concrete Vibrator complete with mounting clamp:

Part No. FP-166-DE

Hydraulic Vibracore can be used with Percussion Sampler Tripod or mounted to a drill rig or powered by a portable powerpack.

Part No. FP-166-CR

Powerpack to suit: Part No. FP-111 range of powerpacks

Percussion Sampler Tripod assembly: Part No. 1650065

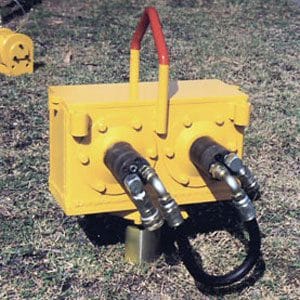

Hydraulic Vibracore can be used with Percussion Sampler Tripod or mounted to a drill rig or powered by a portable powerpack.

Part No. FP-152-BN

Powerpack to suit: Part No. FP-111 range of powerpacks

Percussion Sampler Tripod assembly: Part No. 1650065

Vacuum pump used to help retain samples. Hydraulic:

Part no. FP-152-1

or

Honda Petrol powered: Part No. FP-152-2
