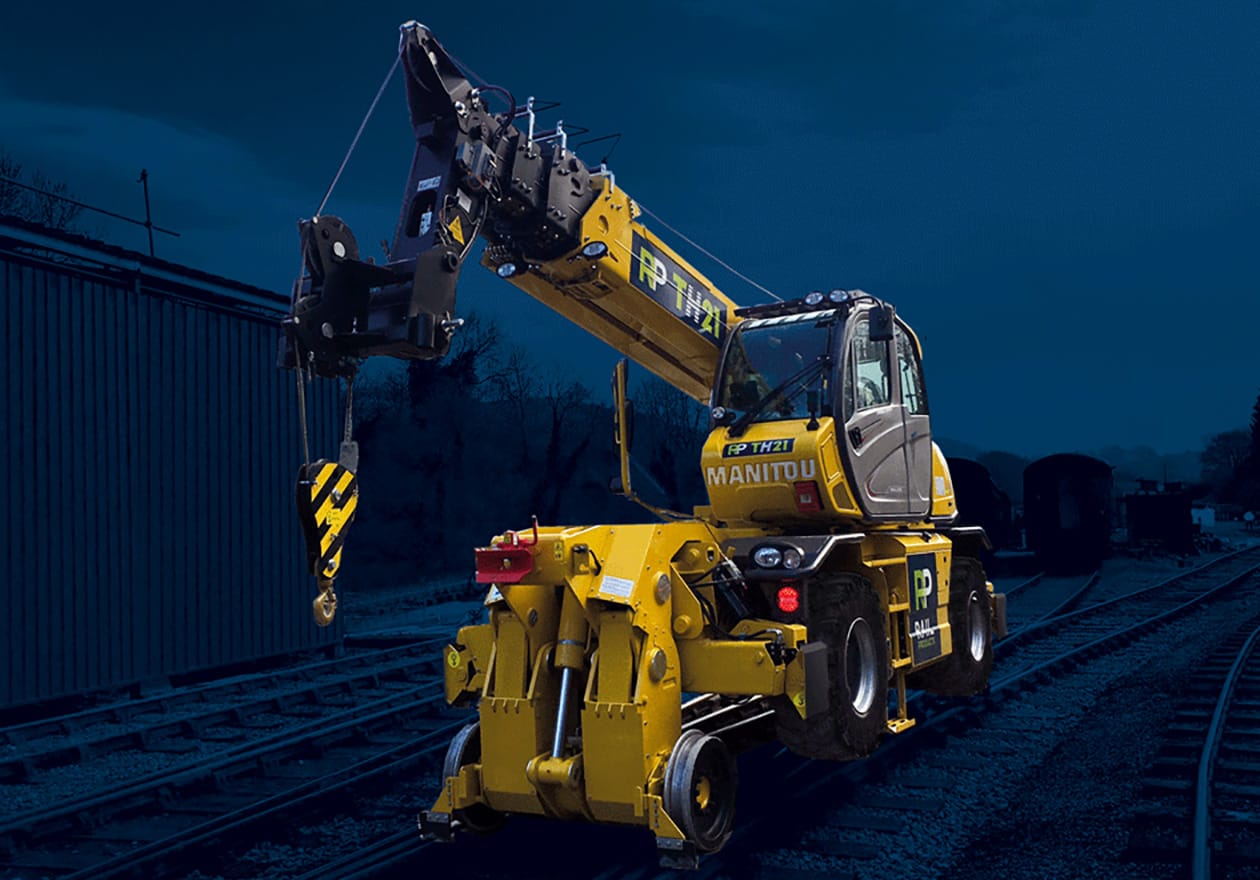

Rail products UK has exclusively developed the new TH21 road rail crane for the rail network. The TH21 can lift and carry up to 6 tons reaching a height of 21 metres as well as towing up to 48 tons. The crane is versatile on and off rail, not only with its lifting capability, but it is compatible with over 20 different attachments, from under bridge inspection platform and extendible platforms with cranes to fork and buckets.
TH21 – ROAD & RAIL CRANE
TH21 - Road & Rail Crane
Specifications
| Travel Speed | 17km/h |
| Max Towing Speed | 10km/h |
| Work Speed | 5km/h |
| Height | 21m |
| Rail Gauge | 1435mm / 1600mm |
| Towing Capacity | 48T – Airbrakes |
| Lifting Capacity | 6T |
| Rail Oscillating Axle | 50mm Both Sides |
| Max Slope Accepted | 1.25° |
| Max Cant – Travel | 200° |
| Max Cant – Stationary | 120° |
| Max Cant – Lift & Travel |
120° / 5km/h |
