FP-115

Hydraulic Powerpacks for Weld Shears

1 / 10

Hydraulic oil temperature control is carried out at every step of the design and manufacture process. The hydraulic oil reservoir is an aluminium casting with heat dissipating fins shaped to maximise the surface area in contact with the atmosphere. Heat transferred from the engine crankcase through the pump bell housing to the pump is restricted with an insulating gasket as well as air ventilating holes through the bell housing. The pump receives attention at our factory to further improve its efficiency and reduce heat generation. The whole design concept is for a reliable working unit.

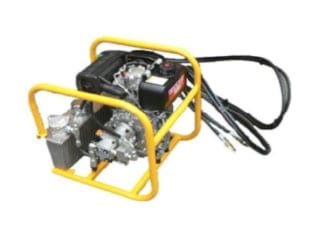

Part No. FP-115-1

Honda Recoil Start

Part No. FP-115-4

Yanmar Recoil Start

Part No. FP-115-5

Yanmar Electric Start

The above Powerpacks come standard with 4.6m hoses, however longer hoses are available allowing the Powerpack to be left on the truck/ute:

10m Hoses - Part No. H062-10000-008; Part No. H062-10000-034

24m Hoses - Part No. H062-24000-008; Part No. H062-24000-034

30m Hoses - Part No. H062-30000-008; Part No. H062-30000-034

Melvelle High Pressure Weld Shear – FP-168-EQ

Model code — quote this in your enquiry

FP-115

Specifications

ModelFP-115-1FP-115-4FP-115-5
EngineHonda 5.5HP PetrolYanmar 4.8HP DieselElectric Diesel
Dimensions (mm)510 x 400 x 420510 x 400 x 500580 x 475 x 415
Weight (kg)36.537.550
Pressure (psi)3,6503,6503,600
