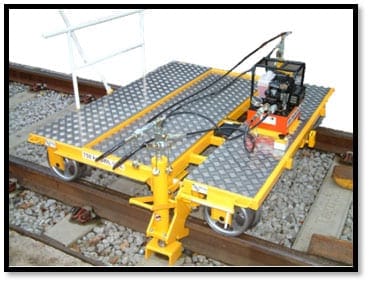

Rail Jacking Trolley
1 / 3
The operating pressure of the RJT is set between 2,300 psi and 3,000 psi. This is maintained by the system pressure relief.
The RJT can be used to lift the following rail types of rail section
Part No. 1121012
Features

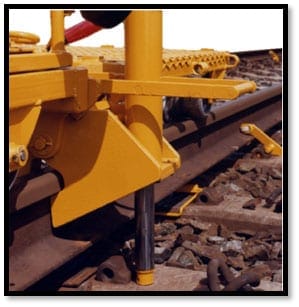

- Lifts rail from sleepers to assist in pad replacements
- Simple one-man operation
- Allows rapid renewal of all types of pad fitted under concrete sleepers
- Cycle time of only 20 seconds – Up to 1000m/hr
- Up to 125mm rail lift, allowing access to 16 – 20 sleepers per cycle
Specifications
- Noise dB (a)
- 84 – 96
- Length
- 1560 mm
- Width (rams up)
- 1900 mm
- Height
- 480 mm
- Weight (Without Power Pack Assembly
- 215 kg
- Power Pack Assembly Mass
- 15kg
Operating performance
- Maximum SWL UDL on trolley deck
- 750 kg
- Maximum Lift Ram Force
- 4.1 – 5.3 tonnes
- Maximum Lift (without extension or supports)
- 127 mm
- Maximum Pad Replacement
- 400/hour
- Maximum Under Rail Roller Placement
- 1000m/hour
