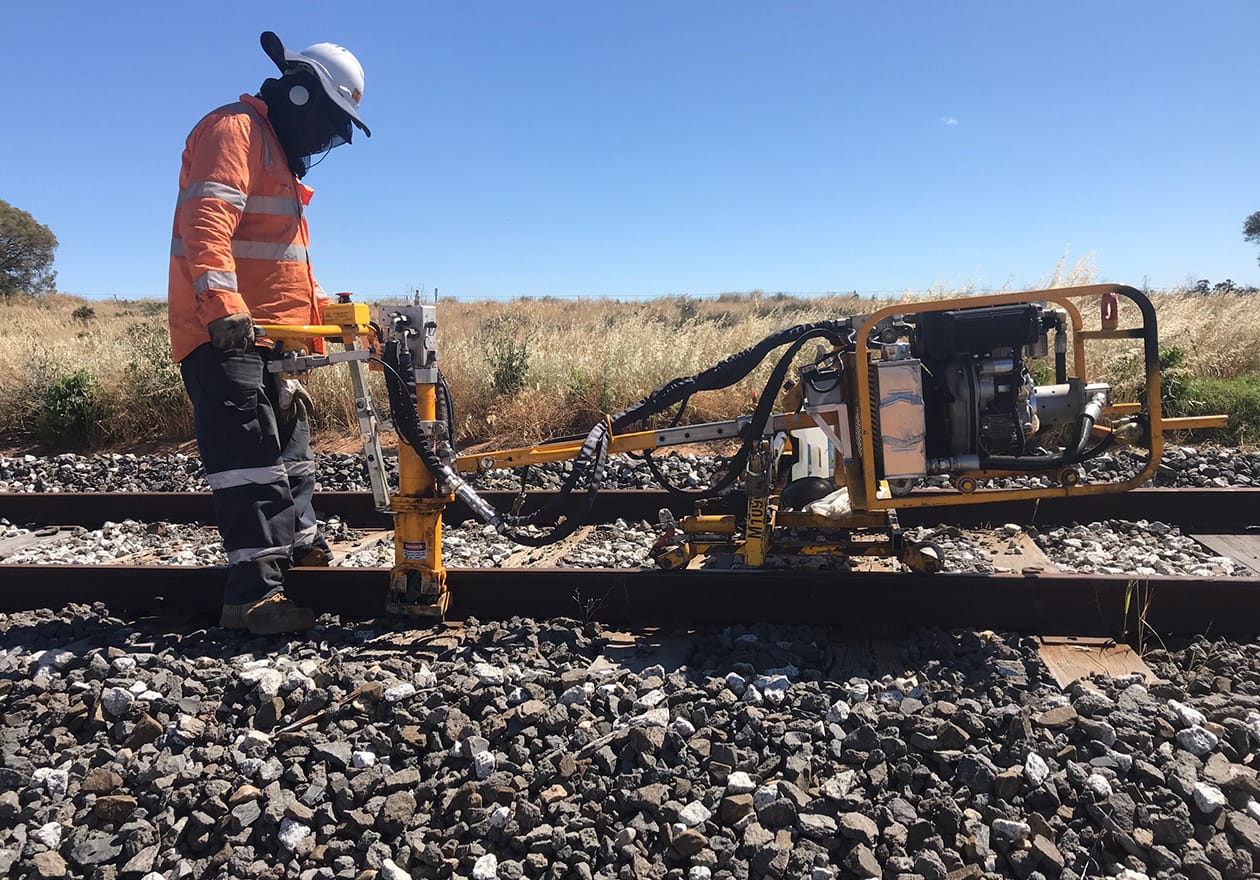

Spike Puller – FP-108

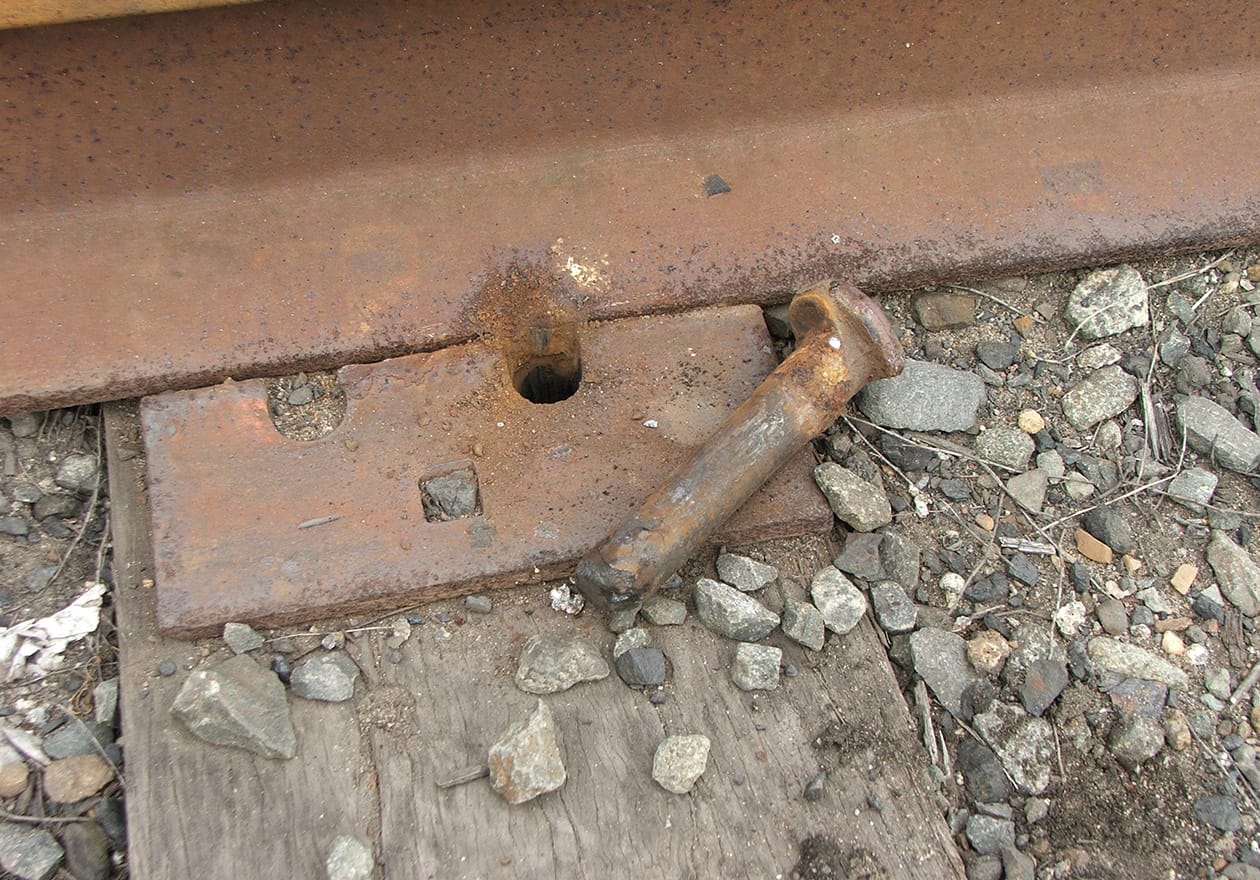

The FP-108 Spike Puller pulls both lock and dog spikes from all grades of wooden sleepers.

The spike puller can be used on rail sizes from 31kg/m to 68kg/m rail with a variety of rail plates, removing both dog and lock spikes using hydraulic force rather than operator exertion. This significantly improves efficiency and eliminates manual handling hazards associated with removing rail spikes.

Producing 9.5 tonnes of force, spikes in swollen sleepers are easily removed. The 108 spike puller can remove spikes quickly and with ease reducing removal time and effort. Even well rusted dog spikes in swollen Australian Hardwood are no match for the Melvelle spike puller.

Low cycle time is achieved with a regenerative return circuit (cycle times as low as 3 seconds). All electric start machines have a night light option.

• Pulls both lock and dog spikes, both jaw types supplied with machine.
• 95 kN (9.5 tonne) pulling force, much higher than our competitors.
• Spare parts readily available from our workshop.
• Machine weight counterbalanced for minimum operator effort.
• All trolley gauges available including dual gauge trolleys.

• Emergency Stop.
• Brake Lever.
• Fully Guarded – There is No Access to Pinch or Crush Points.
• “Dead Man” Switch Requiring Two Handed Operation.
