E-Clip/PR Clip Inserter and Remover

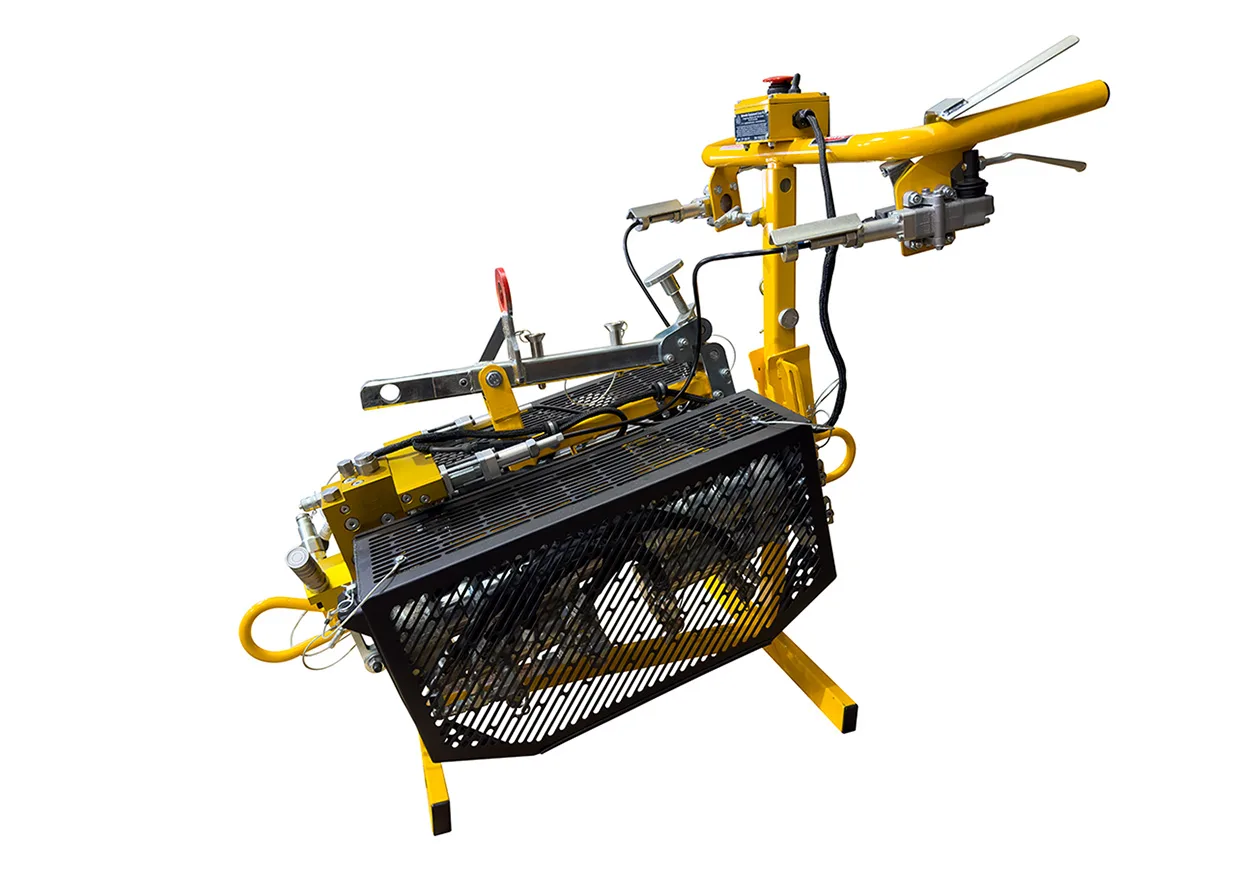

The FP-190 work head is designed to remove and install Pandrol E and PR Clips (elastic fasteners) that are used to fasten the rail to sleepers. The unit can be used on rail sizes from 41kg/m to 68kg/m rail with steel, timber or concrete sleepers.
The 190 work head removes and installs Pandrol E and PR clips using hydraulic force rather than operator exertion. This significantly improves efficiency and eliminates manual handling hazards associated with installing and removing E and PR clips.
With the floating jaws producing 4 tonne of force even galvanised clips are easily inserted. Working on both sides of the rail simultaneously, the 190 clips/unclips a sleeper in 10-15 second. The unique positioning method allows sleepers to drop up to 20mm without missing or incorrectly engaging the clip, making it very well suited to real track conditions.
Features
- Tool-free jaw change in 3 minutes.
- Simple Tool-free set up on track.
- Convenient stowage of spare jaws, including spare pins.
- Unique jaw design prevents clips rotating forward ensuring they are driven in correctly.
- Clip drive adjustment, preventing over/under drive.
- Maintenance free – no greasing.
- Single sided operation if required.
- Work light.
- Ergonomic, height adjustable handles.
- Precisely balanced – only 3-5 kg on operator.
- Stowage/transport frame and lifting bar.
- Designated lift point for mechanical lifting.
- Fully Guarded – There is No Access to Pinch or Crush Points.
- “Dead Man” Switch Requiring Two Handed Operation.
- Emergency Stop.
- Clip Retaining Jaws – Clips Cannot Fly Off When Unclipped Due to the Shape of the Jaws.
- All Hydraulic Hoses are Fitted with Hose Protection.
- Flow (L/min): 30
- Pressure Max (psi): 2,700
- Weight wet (kg): 106
- Length (mm): 1,100
- Width (mm): 740
- Height (mm): 1,000
Model code — quote this in your enquiry
FP-190Downloads
