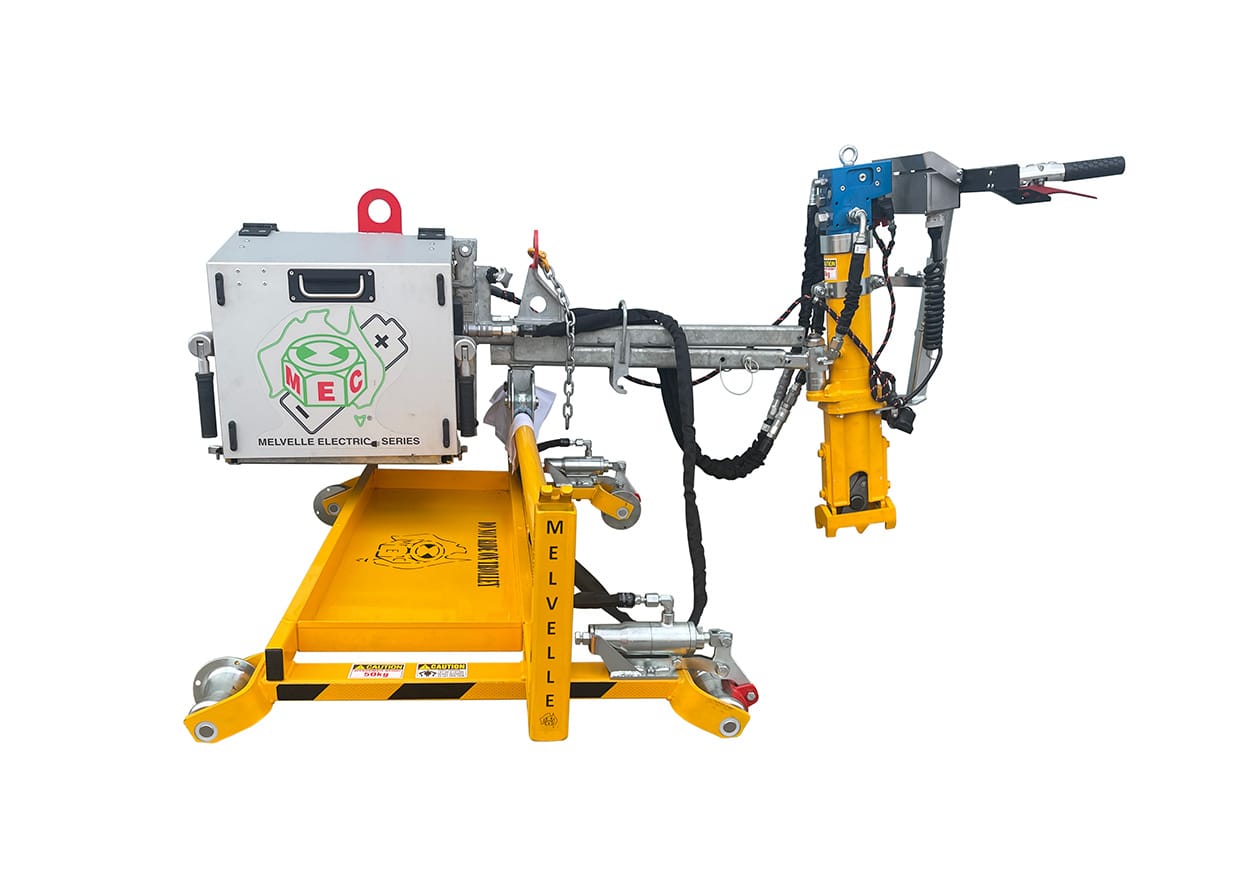

Battery Powered Trackpack System

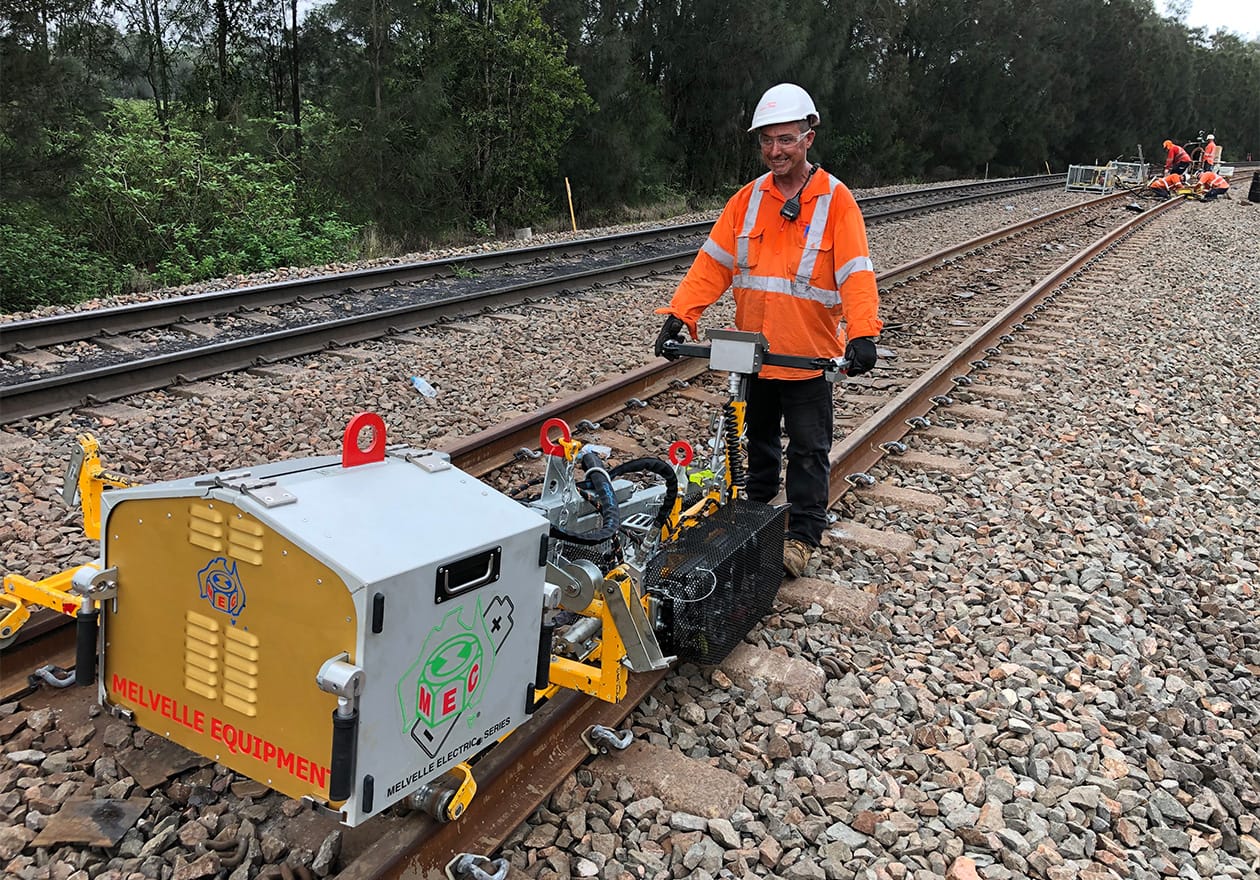

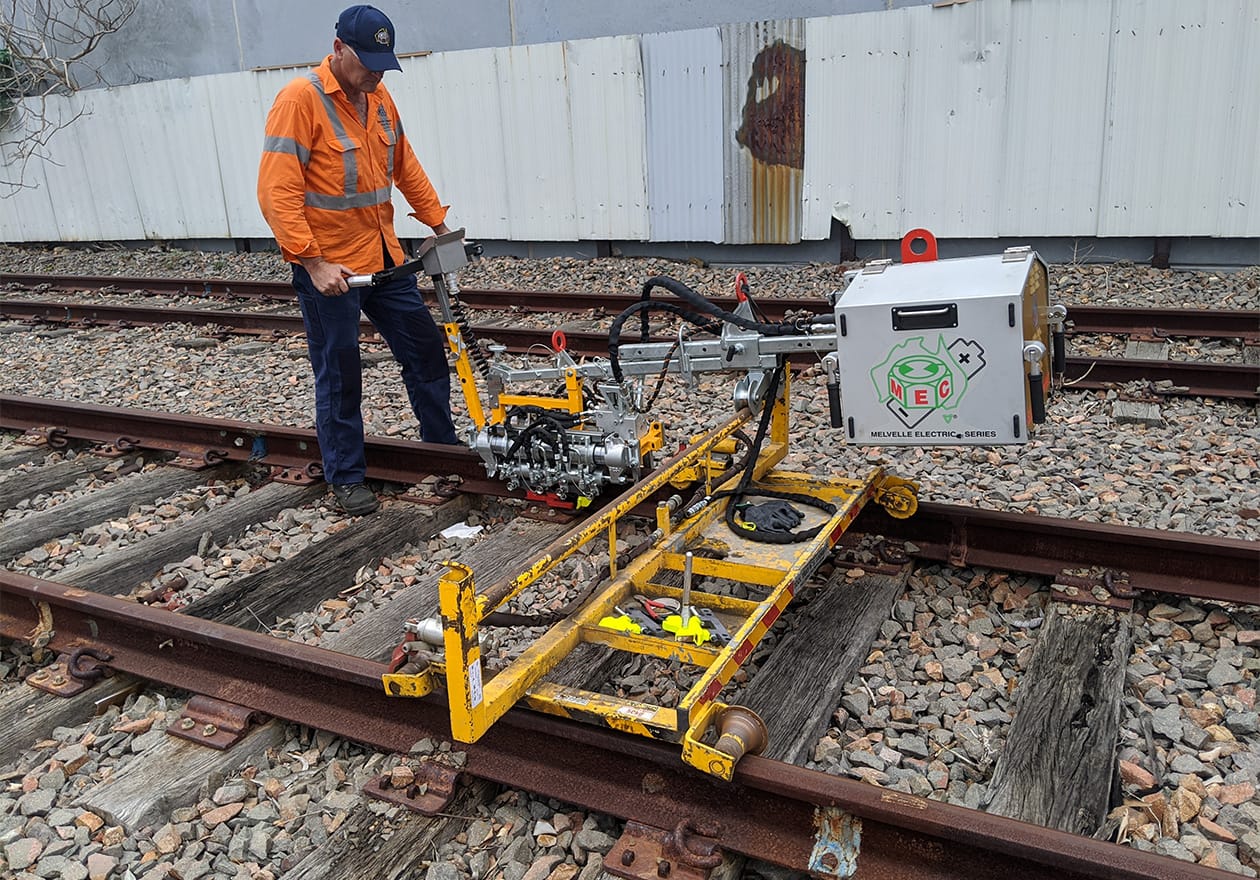

The FP-143 Gen 2 Battery Powered Trackpack System is designed to supply hydraulic power to MEC workheads, as well as the brake cylinder on the machine trolleys. The Trackpack also acts as a counterbalance for MEC workheads that assemble to it.
The Gen 2 Trackpack has a multitude of different rail maintenance workheads able to be assembled to it for use. This is achieved by utilising a quick-change attachment along with hydraulic quick snap connectors. This functionality allows the operators/company a cost-effective solution as an array of various workheads can be transported to site with only a few Trackpacks required (equal to the number of required operators).

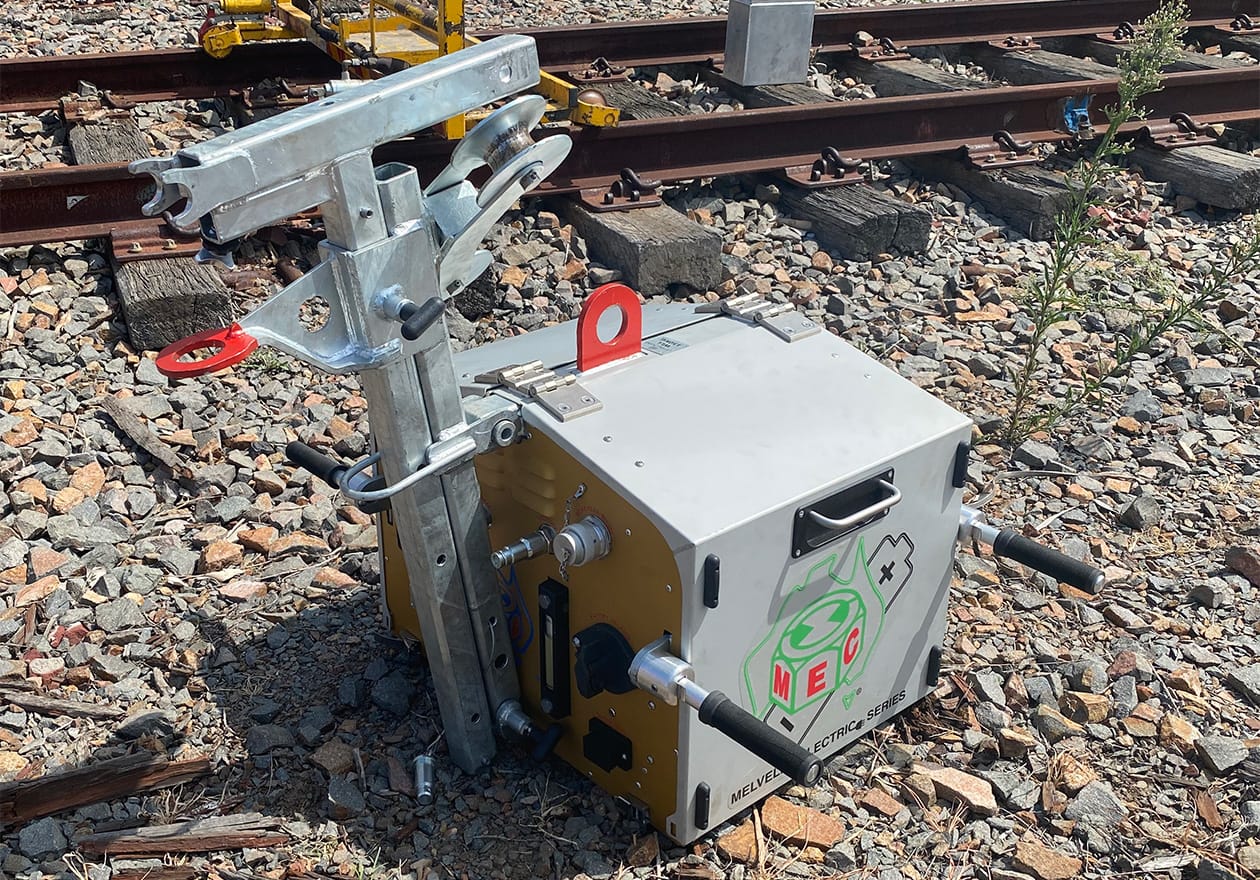

Incorporating a detachable boom allowing for a smaller space requirement for transport, this design also allows for easier assembly if the Trackpack and workhead are being manually assembled on site.
By utilising the adjustable pivot point, the counterbalance feature of all trackpacks is maintained across all work heads maintaining an operator lift between fasteners of approximately 5kg. This helps prevent repetitive strain injuries due to heavy lifting.
As well as the counterbalance feature, the FP-143 Battery Powered Trackpack System has inherent safety features built into the design. This includes emergency stop circuit, hose covers and lifting points (mechanical lifts), multiple fold down carry handles (17kg per person) and no manual valve adjustments. These features ensure safe and efficient operation of workheads.
Features
- No Emissions
- Low Noise
- Low Vibration
- Minimal Heat Produced
- Push Button (Effortless) Control
- Very Efficient – Only Uses Energy When Required (e.g. Removing Clip)

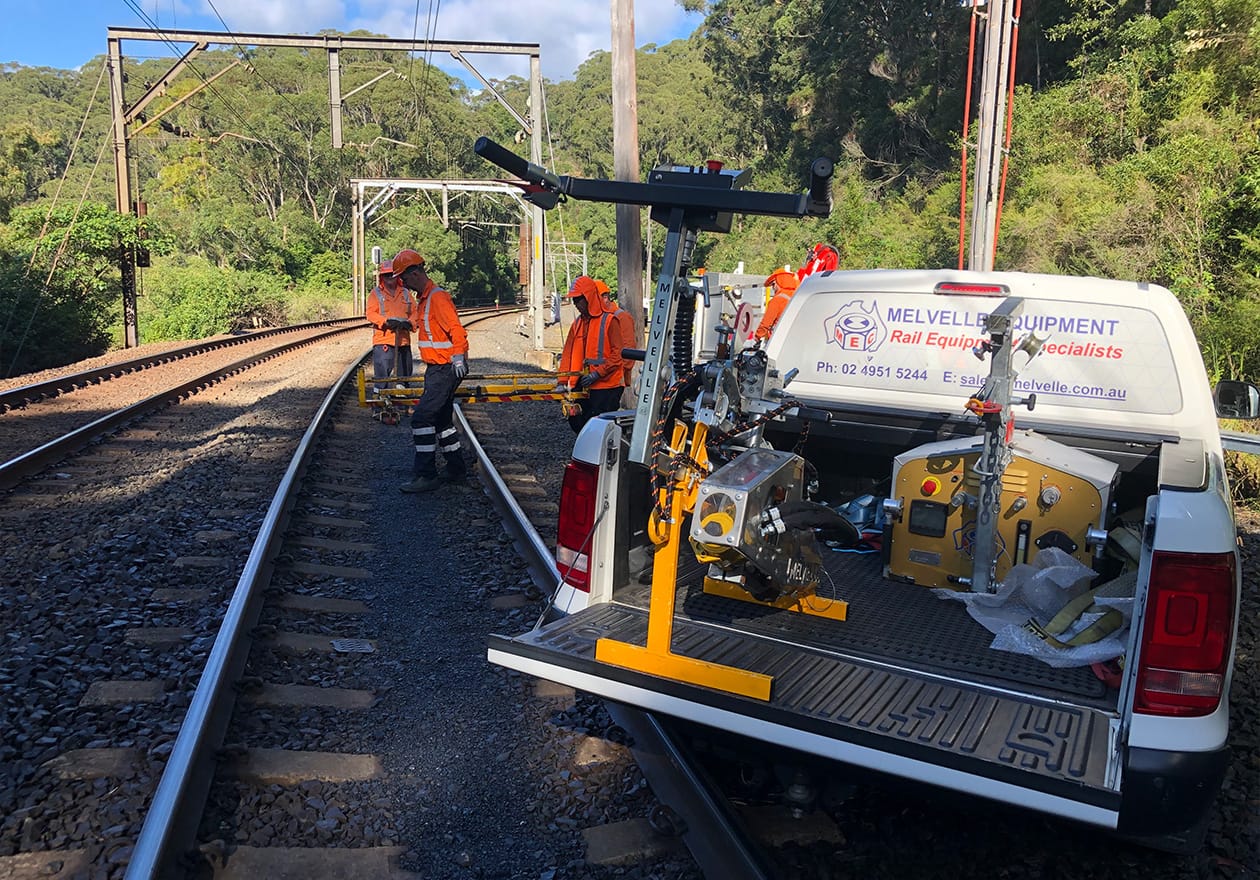

- Easy to Transport – Removable Boom, Lifting Points, 4x Foldable Carry Handles
- Flow (L/min): 30
- Pressure Max (psi): 3,000
- Weight total (kg): 140kg 78kg – Trackpack – No Boom or Batteries
- Length (mm): 1,400 (fully retracted boom)
- Length (mm): 1,928 (fully extended boom)
- Width (mm): 650
- Height (mm): 575
- Weight (kg): 12kg
- Recharge Time (Hours): 4.5 (Using 1x Charge – Charge Time Increased For 3+ Batteries Being Simultaneously Charged If Only One Changer Is Used)
- Minimum Capacity After 1000 Charge Cycles (%): 70%
- No Engine Therefore: No Engine Oil, Oil Filter, Fuel Filter, Air Filter or Spark Plugs.
- Self-Diagnostic Control Display Shows Issue/s with the Machine.

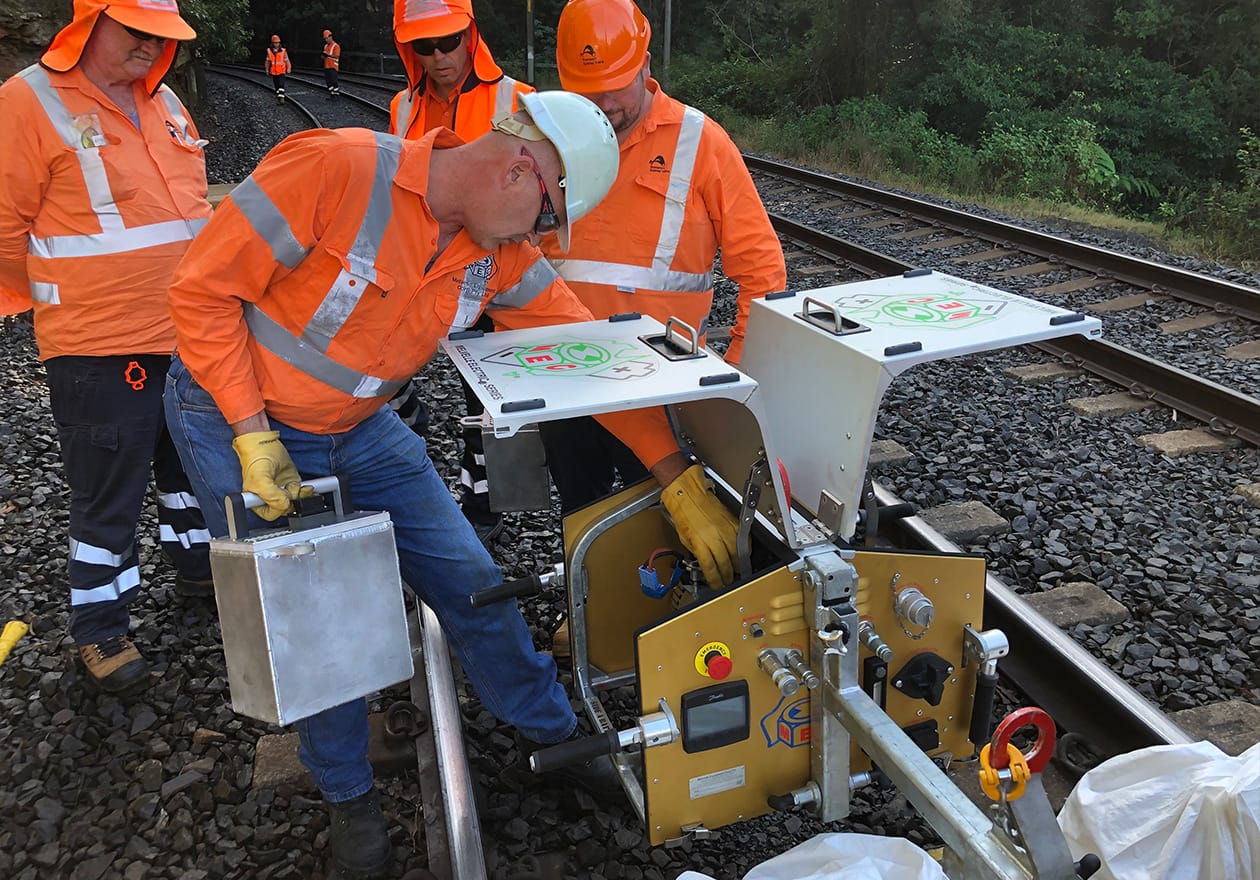

- Self-Diagnosing “Smart” Batteries – Batteries will monitor use over time and report any issues or reduced capacity to the main battery Trackpack control screen.
Model code — quote this in your enquiry
FP-143-BEG2Downloads
The battery Trackpack, on film
See the FP-143 battery-powered Trackpack system running on track — one silent, emission-free power source driving a whole family of interchangeable work heads.
