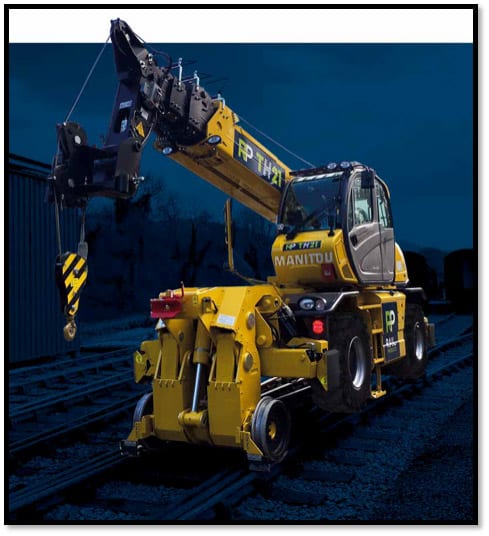

RAIL PRODUCTS UK HAS EXCLUSIVELY DEVELOPED THE NEW TH21 ROAD RAIL CRANE FOR THE RAIL NETWORK. IT MEETS THE NEW RIS-1530-PLT ISSUE 6 SAFETY STANDARD AND IS EN APPROVED. THE TH21 CAN LIFT AND CARRY UP TO 6 TONS REACHING A HEIGHT OF 21 METRES AS WELL AS TOWING UP TO 48 TONS. THE CRANE IS VERSATILE, NOT ONLY WITH ITS LIFTING CAPABILITY, BUT CAN ALSO MAKE LIGHT WORK OF UNDER-BRIDGE INSPECTIONS WITH ITS 3D SYSTEM.

Specifications

Travel speed: 17km/h
Maximum towing speed: 10km/h
Work speed: 5km/h
Height: 21m
Rail gauge: 1.0m–1.6m
Towing capacity: 48t, airbrakes
Lifting capacity: 6t, see loadchart
Gauge: W6A
Rail oscillating Axle: 50mm both sides Max. slope accepted: 1.25°
Max. cant travel: 200°
Max. cant stationary work mode: 120° Max. cant lift and travel mode: 120°, 5km/h Max. wind speed: 6 Bf
Approved to RIS-1530-PLT Issue 6
EN approved

Rail Products UK – TH21 Road Rail Crane
